ELEGOO ESP-32 Super Starter Kit

Launch Your IoT Journey with the ELEGOO ESP-32 Super Starter Kit!

Welcome to the next level of electronics and programming! ELEGOO ESP-32 Super Starter Kit is designed to take you from a complete beginner to a confident maker, capable of building smart, connected devices for the Internet of Things (IoT).

At the Heart: The ESP-32 Microcontroller (Type-C)

This kit is built around the ESP-32 board. Unlike basic microcontrollers, the ESP-32 is featured with:

Dual-Core Processor: Handle more complex tasks and multi-threaded operations smoothly.

Integrated Wi-Fi: Connect your projects directly to your local network or the internet. Fetch data from web services, control things remotely via a web browser, or create your own Wi-Fi networks.

Integrated Bluetooth: Communicate wirelessly with smartphones, tablets, laptops, and other Bluetooth devices. Perfect for creating wearable tech or custom controllers.

Rich Peripheral Interface: Abundant GPIO pins support various interfaces (I2C, SPI, UART, PWM) to connect to a world of sensors and actuators.

Compatible with Arduino IDE, leveraging thousands of existing libraries and examples.

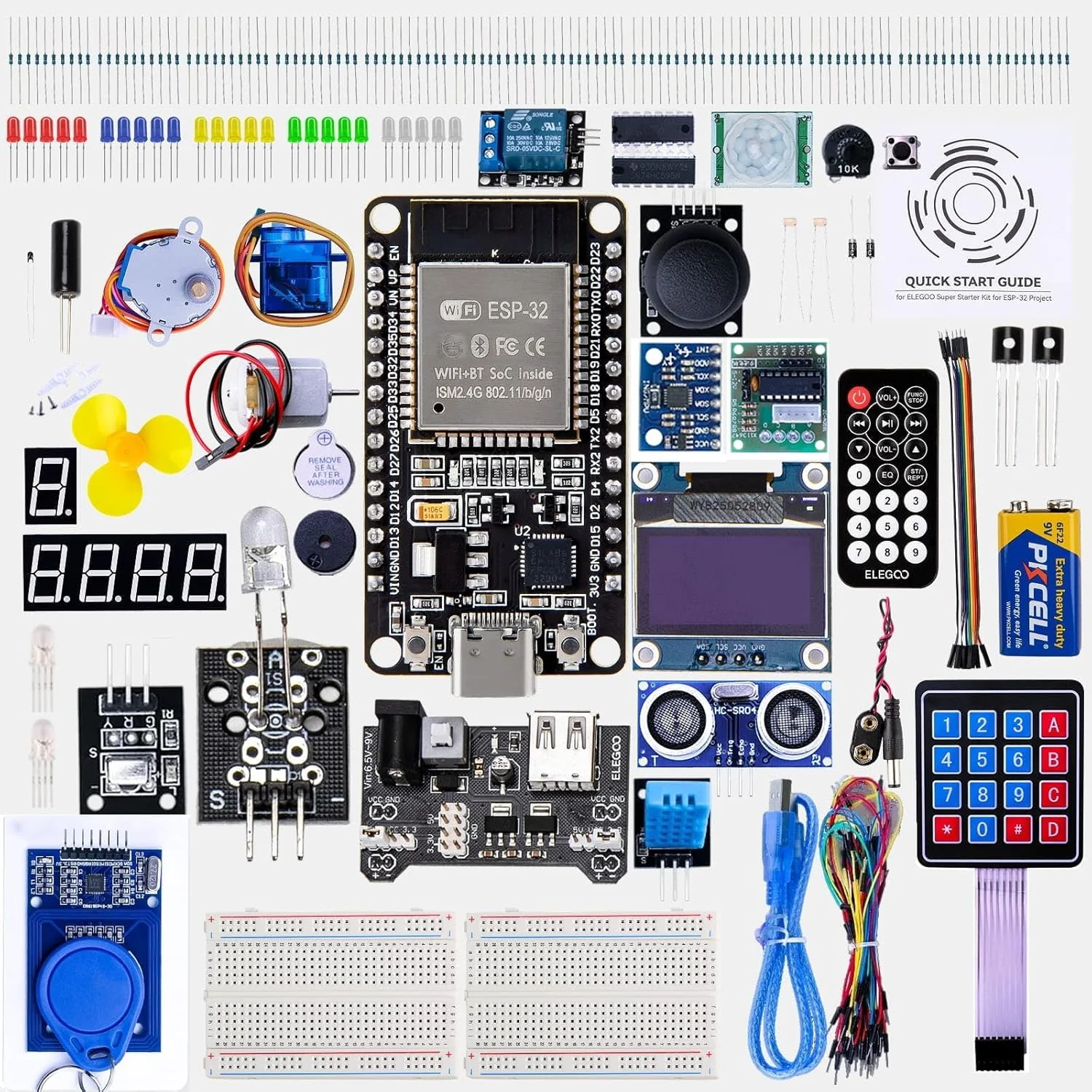

What's Inside?

• ESP-32 Board × 1; 0.96 Inch OLED Display Module × 1; GY-6500 Module × 1; Power Supply Moudle ×1;
• ULN2003 Stepper Motor Driver Module ×1; Stepper Motor ×1; Servo Motor SG90 ×1; 5V Relay ×1;
• IR Receive Module ×1; IR Emission Module ×1; Joystick Module ×1 ; DHT11 Temperature and humidity Module ×1;
• Ultrasonic Sensor ×1; Fan Blade and 3-6V motor ×1; Active Buzzer ×1; Passive Buzzer ×1; 74HC595 ×1; L293D ×1;
• Rc522 RFID Module ×1; Membrane Switch Module ×1; HC-SR501 PIR Motion Sensor Module ×1; Button ×5; Potentiometer 10K ×1;
• 1-Digital-7-SegmentDisplay ×1; 4-Digital-7-SegmentDisplay ×1; Tilt Ball switch ×1; Remote Control ×1; 400 Tie -Points Breadboard ×2;
• USB A -TO -C ×1; Female-to -male Dupont Wire ×10; Breadboard Jumper Wires ×65; 9V Battery with Snap-on Connector Clip ×1;
• Resistor 10Ω×10; Resistor 100Ω×10; Resistor 220Ω×30; Resistor 330Ω×10; Resistor 1kΩ×10; Resistor 2kΩ×10; Resistor 5k1Ω×10; Resistor 10kΩ×10; Resistor 100kΩ×10; Resistor 1MΩ×10;
• Red LED ×5; White LED ×5; Blue LED ×5; Green LED ×5; Yellow LED ×5; RGB LED ×2; Themistor ×1; Diode Rectifier ×2; Photoresistor(photocell) ×2; NPN Transistor PN2222 ×2



Learn by Doing: Weather Station

In this chapter, you will master the usage of the DHT11 temperature and humidity sensor and the water level sensor, and be able to accurately collect temperature, humidity, and water level data in the current environment. These data can be used to simulate core monitoring indicators such as temperature, humidity, and precipitation required by a weather station.

Smart Access Control

In this chapter, you will learn how to apply the RC522 RFlD Reader Module on ESP-32. This module uses the Serial Peripheral Interface (SPl) bus to communicate with controllers for Arduino, Raspberry Pi, beagle board. etc.

Snake Game Console

In this chapter, we will take you into a world of creativity and fun in electronic making, and together we will create a classic Snake game with our own hands. By skillfully combining an OLED screen and a joystick sensor, you will experience firsthand how to combine simple hardware devices with programming to create a unique maker experience.
